Medium-Pressure Screw Air Compressor Flow Path

0
154

Compressed air in the medium-pressure range often comes from a Medium-Pressure Screw Air Compressor that relies on positive-displacement rotary motion. Ambient air enters the intake port and fills the spaces between the helical rotors. As the rotors turn, those spaces shrink, raising the pressure of the trapped air until it reaches the discharge port. The process runs continuously, producing a smooth flow that many industrial applications prefer over intermittent delivery.

The heart of a Medium-Pressure Screw Air Compressor is the air end that houses the two rotors. One rotor carries lobes with a convex profile while the other carries matching concave flutes. Their precise geometry and timed rotation create a series of sealed chambers that move from inlet to outlet. Tight manufacturing tolerances limit internal leakage and help maintain volumetric efficiency across the pressure band. Bearings at each end of the rotors support the loads generated by compression and keep the clearances stable.

Heat management is built into the design of a Medium-Pressure Screw Air Compressor. Compression raises the temperature of both the air and any injected oil. A dedicated cooler removes that heat so that the discharge temperature stays within acceptable limits. After cooling, a separator vessel removes the oil from the air stream, allowing the oil to recirculate while the cleaned air continues downstream. Filters and demisters further reduce residual oil content before the air reaches the plant network.

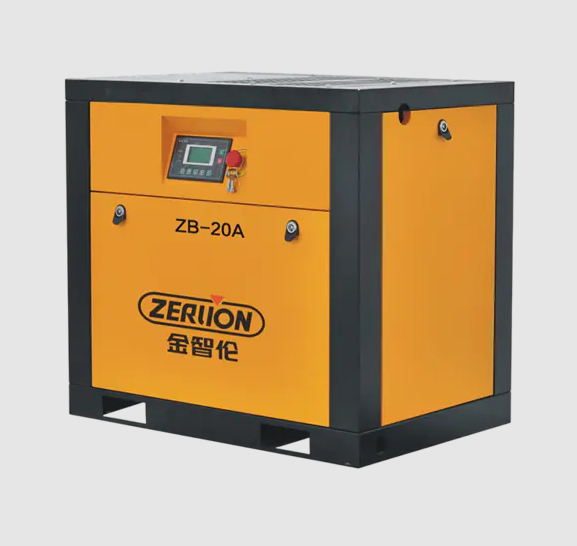

The complete package of a Medium-Pressure Screw Air Compressor includes the motor, coupling or gearbox, cooling system, separation stage, and electronic controller. All components sit on a common base that simplifies transport and installation. Air and oil filters protect internal surfaces from contaminants, while condensate drains remove moisture that forms during compression and cooling. Through this integrated arrangement a Medium-Pressure Screw Air Compressor delivers a continuous, regulated supply of medium-pressure air suited to a variety of industrial tasks.
